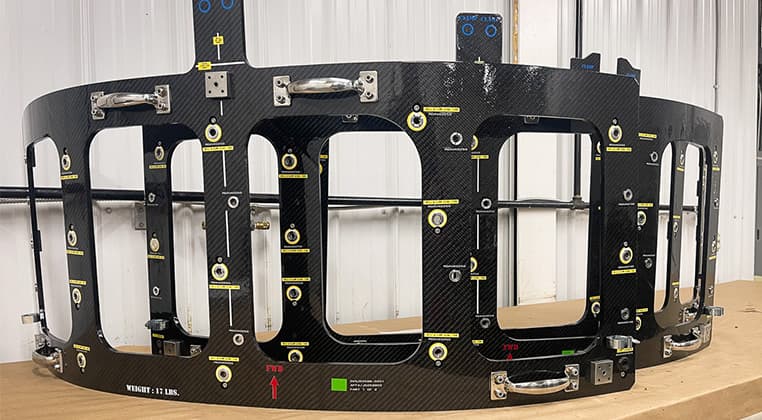

CFRP Composite Assembly Tools

CFRP Composite Assembly Tools for High-Precision Manufacturing

The assembly of large-scale, high-value structures like an aircraft fuselage or wing is a complex process where every component must fit together with perfect accuracy. This level of precision is achieved through advanced assembly tooling, which serves as the backbone of the manufacturing line.

At West Cobb Engineering, our team combines extensive engineering knowledge with cutting-edge manufacturing capabilities to produce assembly fixtures that hold critical components in perfect alignment. We are committed to delivering solutions built on a foundation of competence, credibility, and unwavering quality.

The Advantages of Our CFRP Composite Assembly Tools

Traditionally, large assembly fixtures have been fabricated from steel or other metals. While strong, these materials have considerable drawbacks. They are extremely heavy, requiring significant infrastructure and material handling equipment to maneuver. Furthermore, their high coefficient of thermal expansion (CTE) can cause dimensional changes with temperature fluctuations, creating alignment issues when working with composite parts.

West Cobb Engineering’s CFRP composite assembly tools offer modern solutions that directly address these limitations. By using Carbon Fiber Reinforced Polymer (CFRP) as the primary material, we deliver tooling with a superior combination of properties.

• Lightweight for Enhanced Usability: One of the most significant benefits of CFRP is its exceptional strength-to-weight ratio. A composite assembly tool can be up to 50% lighter than a steel fixture of the same size and stiffness. This dramatic weight reduction simplifies logistics, reduces the need for heavy lifting equipment, and improves shop floor safety and ergonomics. Lighter tools can be moved and reconfigured more quickly, leading to greater production agility.
• Unmatched Thermal Stability: CFRP has a near-zero CTE, which means it does not expand or contract significantly with changes in ambient temperature. When assembling large composite structures like wings or fuselage sections, this property is critical. A CFRP composite assembly tool will maintain its dimensional integrity, ensuring that it holds the composite parts in their true, intended position regardless of shop floor temperature swings. This eliminates thermal-induced stress and guarantees precise alignment.
• Superior Rigidity and Vibration Damping: Despite their low weight, CFRP structures are incredibly stiff and strong. This high modulus ensures that the assembly tool will not sag, twist, or deflect under the weight of the components it is holding. The inherent damping characteristics of composites also mean that vibrations from drilling or other assembly operations are quickly absorbed, contributing to greater accuracy and a better surface finish.
• Design and Manufacturing Freedom: The use of composites allows for the creation of complex, ergonomic, and highly integrated tool designs that would be difficult or impossible to achieve with metal. We can mold locator points, support surfaces, and interfaces for robotic systems directly into the tool structure. This design flexibility enables us to create solutions that are perfectly tailored to your specific assembly process.

West Cobb Engineering: Engineering Excellence in Assembly Tooling

At West Cobb Engineering, our expertise is not limited to a single material or process. We are a full-service engineering and manufacturing partner, dedicated to providing turnkey solutions. Our approach to designing CFRP composite assembly tools is comprehensive, ensuring that the final product enhances your production efficiency and quality.

From Concept to Completion

Our process begins with a deep dive into your project requirements. We work closely with your engineering and production teams to understand the key characteristics of the assembly, critical interface points, and workflow. Using advanced CAD software, we design a tool that is not only dimensionally accurate but also optimized for usability and manufacturability. This responsive and collaborative approach ensures the tool integrates seamlessly into your operations.

State-of-the-Art Production

We leverage our extensive in-house capabilities—including large 5-axis CNC machining, composite fabrication, and precision welding—to build your assembly tool to exacting standards. Master patterns are machined to tight tolerances, and the CFRP structure is laid up and cured under controlled conditions. Every stage of the process is governed by our rigorous quality management system.

Verification and Quality Assurance

A tool's accuracy is its most important feature. We utilize advanced metrology equipment, including laser trackers and portable coordinate measuring machines (CMMs), to verify the dimensional integrity of every assembly tool we produce. We confirm that all locators, supports, and interface points are positioned exactly according to the design specifications, providing you with documented proof of the tool's quality. This commitment to credibility has earned us a reputation as an elite supplier for industry leaders.

Enabling Success Through Superior Tooling

The integrity of every aircraft, satellite, and high-performance vehicle depends on the precision of its assembly. By holding fuselage sections and wings in perfect alignment, our CFRP composite assembly tools play a fundamental role in ensuring that structural integrity and performance requirements are met.

Choosing West Cobb Engineering means partnering with a company that is committed to your mission. We provide the reliable, high-quality tooling that allows your team to perform at its best, safely and efficiently.

Build Your Next Project on a Foundation of Precision with West Cobb Engineering

Discover how our custom composite assembly tooling can improve your production outcomes. Contact West Cobb Engineering today to discuss your specific application. Let’s engineer the solution for your success.
