In modern manufacturing, the efficiency and accuracy of machining operations are directly linked to the quality of the production tooling. When working with large, high-value composite panels, the ability to secure the workpiece is paramount. West Cobb Engineering designs and manufactures high-performance composite production tools, engineered specifically for securing large components during CNC milling and other critical machining operations.
Our approach is built on a foundation of competence and credibility. We understand that a production tool is not merely a fixture; it is an active partner in the manufacturing process. By leveraging the advanced properties of Carbon Fiber Reinforced Polymer (CFRP), we create solutions that provide the rigidity, stability, and reliability necessary to achieve flawless machining results and maximize production throughput.
Production tools, often called machining fixtures or workholding solutions, are essential for any CNC machining process. A well-designed production tool ensures that the part does not move, vibrate, or deflect during aggressive cutting operations, which is critical for maintaining dimensional accuracy and achieving a superior surface finish.
For large composite panels, such as those used in aircraft wings, fuselage skins, or satellite structures, the challenge is magnified. These parts are often geometrically complex and relatively flexible, making them difficult to hold securely without introducing stress or distortion. An inadequate workholding solution can lead to chatter, tool marks, dimensional errors, or even catastrophic part failure on the machine.
While traditional steel and aluminum fixtures have been the standard for decades, they present notable disadvantages when machining large composite parts. The immense weight makes these parts difficult to load, set up, and store, requiring heavy-duty cranes and consuming valuable operator time. Furthermore, their different thermal expansion properties can create issues when fixtures and parts are moved between different environments.
The CFRP composite production tools from West Cobb Engineering provide a superior alternative, engineered to overcome these challenges and enhance the machining process.
The primary requirement of any production tool is stiffness. The fixture must be rigid enough to resist the cutting forces generated during milling without deflecting. CFRP boasts an outstanding stiffness-to-weight ratio, allowing us to design tools that are incredibly rigid yet surprisingly lightweight. This rigidity prevents micro-movements and absorbs machining vibrations, resulting in cleaner cuts, better surface finishes, and extended tool life.
A large steel fixture for an aerospace panel can weigh several tons. A CFRP equivalent can reduce that weight by 50% or more. This significant weight reduction transforms shop floor logistics. CFRP composite production tools are easier and faster to set up, reducing machine downtime between jobs. They are also safer for operators to handle and place less strain on machine tables and automated pallet systems.
CFRP has a near-zero coefficient of thermal expansion (CTE). This means the fixture will not change size or shape with fluctuations in shop floor temperature. This stability is crucial for maintaining the precise location of the part throughout long machining cycles. It ensures that the dimensional accuracy of the first feature machined is identical to the last, regardless of thermal variations.

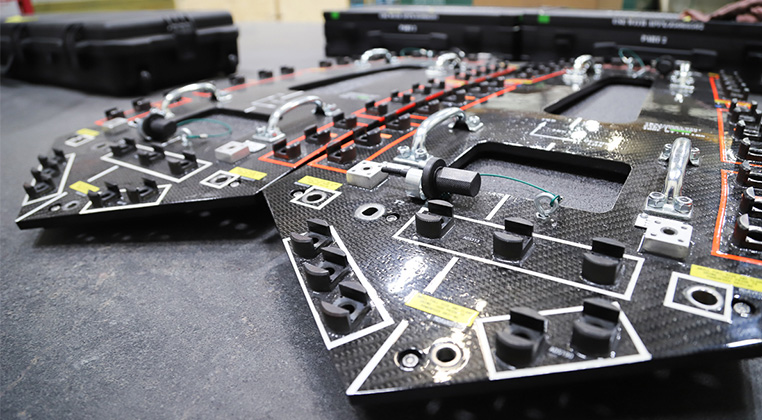

Composite materials can be molded into complex shapes, allowing for the creation of production tools that perfectly conform to the contours of a part. We can integrate vacuum channels, clamping points, and locator pins directly into the tool's surface. This creates a "glove-like" fit that distributes clamping pressure evenly, securing the panel firmly without distorting its delicate structure.
At West Cobb Engineering, we are more than a tooling supplier; we are a strategic partner invested in your production success. Our deep expertise in composites and precision machining allows us to develop CFRP composite production tools that are uniquely suited to the demands of high-performance manufacturing.

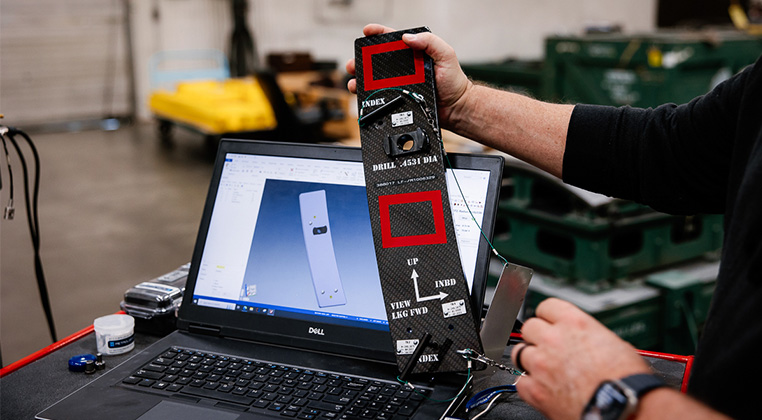

Our process begins with a collaborative review of your machining application. We analyze part geometry, material type, cutting forces, and machine specifications to inform our design. Using advanced engineering software, we model the tool, perform finite element analysis (FEA) to verify its stiffness and strength, and optimize its design for manufacturability and ease of use.
We leverage our comprehensive in-house capabilities to transform designs into reality. Our large-scale 5-axis CNC machines are used to create the master patterns from which the composite tools are molded. Our dedicated composites team then expertly lays up the carbon fiber materials and cures the tool under precise temperature and pressure controls. The final fixture is then machined to its final, exacting dimensions.
Credibility is earned through consistent performance. Every production tool we build undergoes a rigorous quality assurance process. Using state-of-the-art laser trackers and coordinate measuring machines, we dimensionally inspect every critical feature of the tool to ensure it meets the tight tolerances specified in the design. This commitment to quality is why we are recognized as an elite supplier to major aerospace and defense contractors.
By providing a stable, rigid, and reliable foundation for your CNC operations, our CFRP composite production tools empower you to manufacture parts with greater accuracy, efficiency, and confidence.
Partner with West Cobb Engineering to elevate your workholding strategy. Let's discuss how our custom production solutions can optimize your machining operations, and deliver on the promise of mission success.
